Multi Layer Steel Head Gasket Guide: Benefits, Installation & Best Brands (2026)
If you have been shopping for a replacement head gasket or building a performance engine, you have almost certainly come across the term multi layer steel gasket. And if you are wondering what makes a multi layer steel design so special — and why nearly every modern engine manufacturer now uses multi layer steel technology instead of the old single-layer designs — you are in exactly the right place.
In this complete guide, we are going to break down everything you need to know about multi layer steel head gaskets — what they are, how they work, why they are superior to older gasket designs, how to choose the right multi layer steel gasket for your engine, and what to look for when buying multi layer steel gaskets for either a stock replacement or a high-performance build. By the end of this article, you will understand exactly why multi layer steel has become the gold standard in modern engine sealing technology.

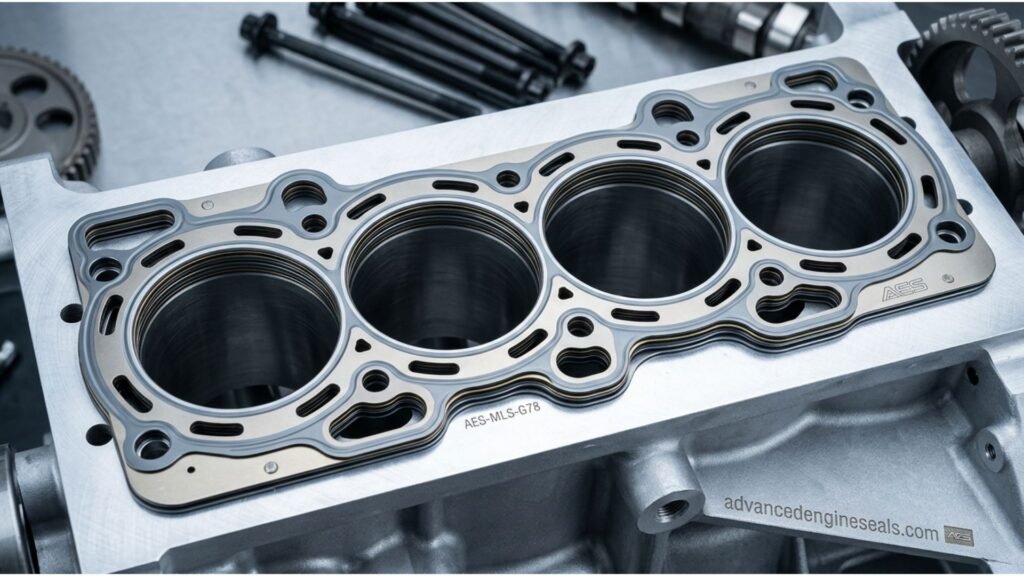

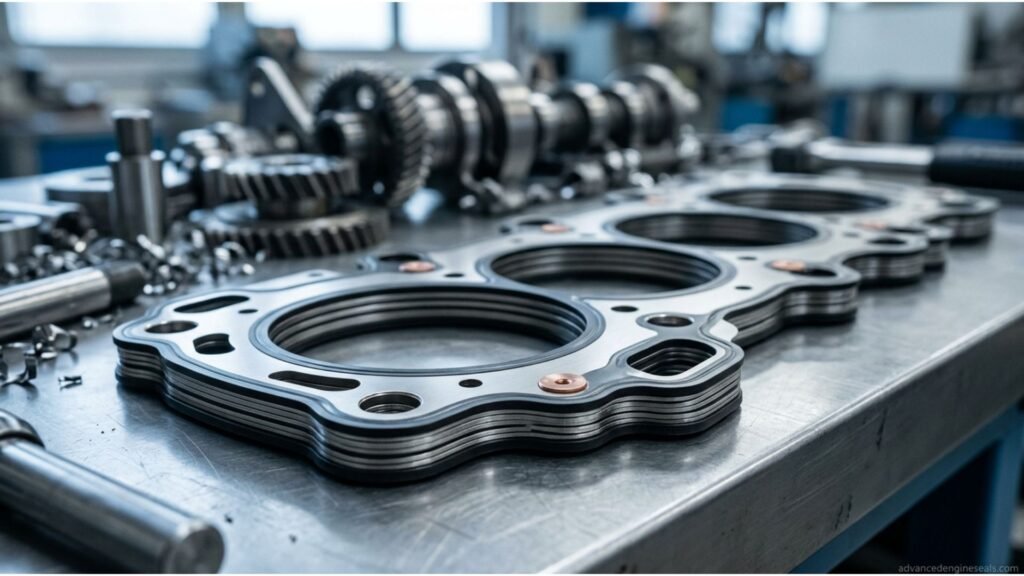

What Is a Multi Layer Steel Gasket?
A multi layer steel gasket — often written as MLS gasket in technical literature — is a head gasket design that uses multiple thin layers of spring steel stacked together and coated with a specialized elastomer material to create an extremely precise, durable, and reliable engine seal. The name says it all: multi layer steel means the gasket is not a single piece of material but rather several distinct layers of high-grade steel working together as one unit.
Most multi layer steel head gaskets consist of three to five individual steel layers, though some high-performance multi layer steel gaskets can have more depending on the application. Each layer in a multi layer steel gasket plays a specific role in the overall sealing system, and together they create a seal that is dramatically stronger, more resilient, and more precise than anything older gasket technologies could achieve.
To understand why multi layer steel technology represents such a significant advancement, it helps to understand what came before it — and why those older designs fell short.
Multi layer steel head gaskets are now the factory-installed standard in virtually every modern passenger vehicle engine manufactured since the mid-1990s. If your car was built in the last 25 years, there is an excellent chance it already has a multi layer steel gasket from the factory.
The History of Multi Layer Steel Technology
Before multi layer steel gaskets became the industry standard, engine manufacturers relied on composite gaskets made from materials like asbestos, graphite, and various fiber compounds sandwiched between thin metal sheets. These older composite gaskets worked reasonably well in the lower-powered, lower-compression engines of earlier decades — but as engines became more powerful, more efficient, and more thermally stressed, composite gaskets started showing their limitations.
The core problem with composite head gaskets was conformability versus durability. A composite gasket could conform to minor surface imperfections on the cylinder head and block, which helped it seal — but the same softness that made it conformable also made it prone to crushing, creeping, and degrading under the extreme heat and pressure cycles of a modern engine. Over time, composite gaskets would lose their clamping load, allowing micro-leaks to develop that would eventually turn into the full blown head gasket failures we all want to avoid.
Engineers began developing multi layer steel gasket technology in the late 1980s and early 1990s as a direct response to these limitations. By building the gasket from multiple precision-stamped layers of spring steel — each layer contributing its own specific sealing function — engineers created a multi layer steel gasket design that could withstand far higher temperatures, far higher cylinder pressures, and far more thermal cycling than any composite design could handle. By the mid-1990s, multi layer steel head gaskets had become the dominant design in new engine production worldwide, and they have held that position ever since.
How Does a Multi Layer Steel Head Gasket Work?
Understanding how a multi layer steel head gasket works requires looking at the individual layers and what each one contributes to the overall sealing system. While the exact construction of multi layer steel gaskets varies between manufacturers and applications, most multi layer steel designs follow a similar fundamental structure.
Important note: because multi layer steel gaskets rely on their elastomer coating for micro-surface sealing, the cylinder head and block surfaces must still be clean and free of deep scratches or gouges. A multi layer steel gasket is more tolerant of surface finish than older composite designs — but it is not a substitute for proper surface preparation.
Multi Layer Steel vs. Other Gasket Types
To really appreciate why multi layer steel gaskets have taken over the industry, it helps to compare multi layer steel technology directly against the alternatives. Here is how multi layer steel head gaskets stack up against other gasket types.
| Feature | Multi Layer Steel Gasket | Composite Gasket | Copper Gasket |
|---|---|---|---|
| Temperature resistance | Excellent | Moderate | Excellent |
| Pressure resistance | Excellent | Moderate | Good |
| Surface finish tolerance | Good | Very good | Poor (needs very flat surface) |
| Durability / longevity | Excellent | Fair | Good with maintenance |
| Reusability | Not recommended | No | Yes (with annealing) |
| Sealant required | No (coating included) | Sometimes | Yes |
| Best application | All modern engines | Older/low-stress engines | Racing / custom builds |
| OEM factory use | Standard since mid-1990s | Pre-1990s standard | Specialized only |
The comparison makes it clear why multi layer steel technology won out. For everyday passenger vehicles and even most performance applications, a quality multi layer steel head gasket offers the best combination of durability, sealing performance, and ease of installation of any gasket type available. Copper gaskets remain popular in extreme racing applications where the engine is frequently disassembled — but for everything else, multi layer steel gaskets are the clear choice.
Benefits of Multi Layer Steel Head Gaskets
The reason multi layer steel head gaskets have become so dominant is not just marketing — there are real, measurable engineering advantages that multi layer steel technology offers over every alternative. Here are the key benefits of choosing a multi layer steel gasket for your engine.

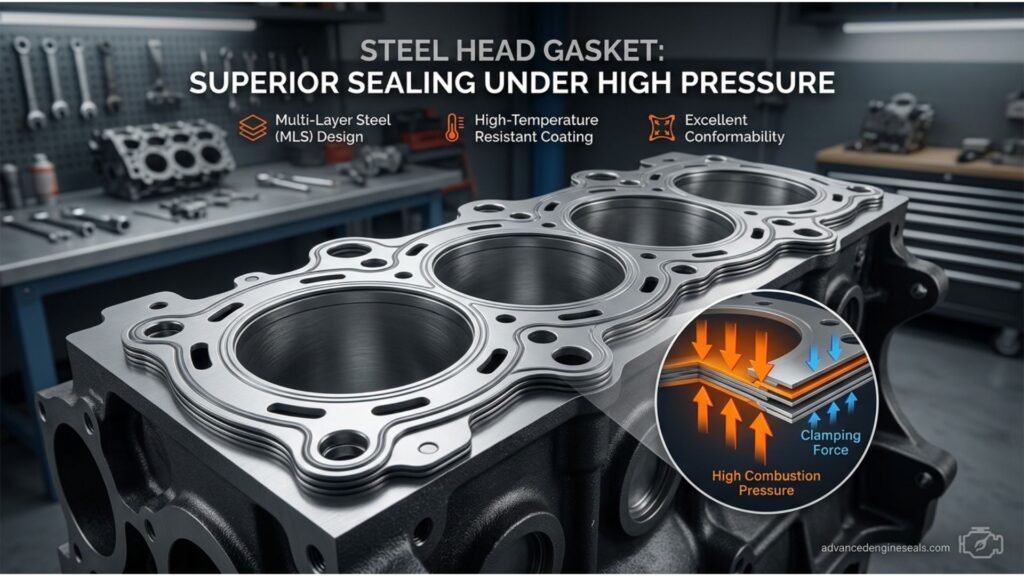

Superior Sealing Under High Pressure
Modern engines — especially turbocharged, supercharged, and high-compression naturally aspirated engines — generate combustion pressures that would destroy older composite gaskets in short order. The spring-loaded embossed bead design of a multi layer steel head gasket maintains its sealing load even under the extreme pressure spikes that occur thousands of times per minute inside a running engine. The multi layer steel construction simply does not creep or crush under high cylinder pressure the way softer composite materials do.
For most stock replacement applications, a quality multi layer steel gasket from a reputable brand like Fel-Pro, Victor Reinz, or the OEM manufacturer will outperform any other gasket type available and provide reliable service for the remaining life of the engine.

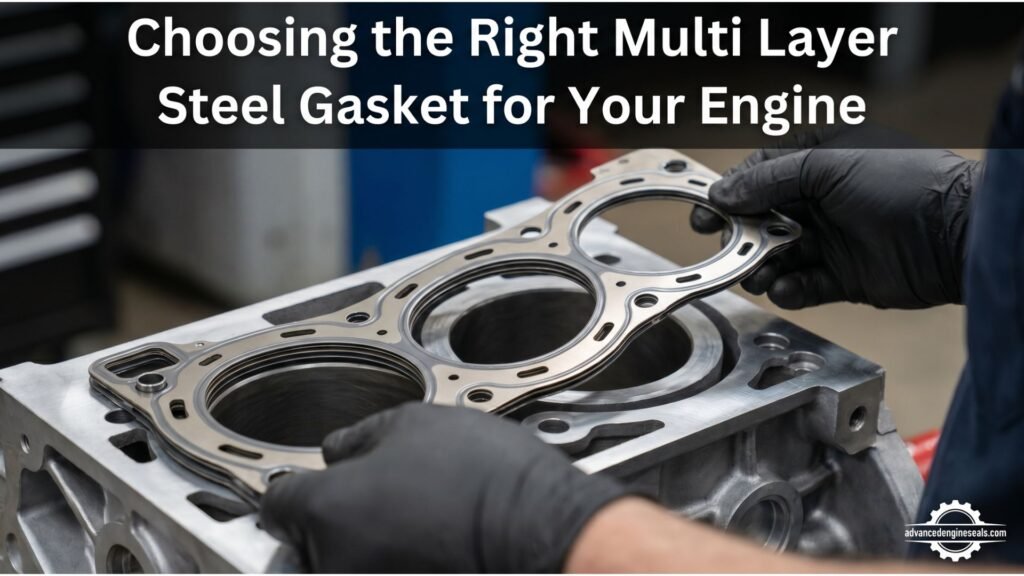

Choosing the Right Multi Layer Steel Gasket for Your Engine
Not all multi layer steel gaskets are the same, and choosing the right multi layer steel head gasket for your specific application makes a real difference in the quality and longevity of the repair. Here is what to look for when shopping for multi layer steel gaskets.
Match the Gasket to Your Exact Engine
This is the most important rule when buying any multi layer steel gasket — always verify fitment by your engine’s specific displacement, bore size, and code rather than just the year, make, and model of the car. Two vehicles from the same model year can have different engine variants, and the multi layer steel head gasket for one will not fit the other. Use your VIN number or engine casting code to confirm you are ordering the correct multi layer steel gasket for your specific engine.
What is a multi layer steel head gasket?
A multi layer steel head gasket is a head gasket built from multiple thin layers of precision-stamped spring steel — typically three to five layers — coated with a specialized elastomer sealing compound. Each layer in the multi layer steel design plays a specific role: the stopper layer controls compression while the active sealing layers use embossed spring beads to create high localized sealing pressure around the combustion bores, oil passages, and coolant passages.
Multi layer steel head gaskets are now the factory-installed standard in virtually every modern production engine built since the mid-1990s. They replaced older composite gaskets because multi layer steel technology handles far higher temperatures, pressures, and thermal cycling than any previous gasket design could manage.
Why is a multi layer steel gasket better than a composite gasket?
Multi layer steel gaskets outperform composite gaskets in nearly every important area:
Multi layer steel handles higher cylinder pressures without creeping or crushing
The spring steel layers in a multi layer steel gasket recover their shape after each thermal cycle — composite materials permanently deform over time
Multi layer steel gaskets maintain their clamping load for far longer service life
No sealant is needed — the elastomer coating built into multi layer steel layers handles micro-surface sealing automatically
Multi layer steel gaskets install more consistently because the stopper layer controls compression precisely
How many layers does a multi layer steel gasket have?
Most standard replacement multi layer steel head gaskets have three layers — two outer active sealing layers with embossed spring beads and one inner stopper layer that controls compression. This three-layer multi layer steel design covers the vast majority of everyday passenger vehicle engines.
Performance multi layer steel gaskets for modified or high-output engines — turbocharged, supercharged, or high-compression builds — often have four or five layers. The extra layers in these performance multi layer steel gaskets provide additional sealing capacity and durability under the higher cylinder pressures these engines generate. More layers generally means a slightly thicker multi layer steel gasket and a small reduction in the engine’s compression ratio, which is sometimes desirable in performance builds.
Multi Layer Steel Gaskets in High Performance Applications
Multi layer steel technology is not just for stock engine replacements — it is also the preferred choice for performance engine builders working with turbocharged, supercharged, and high-compression naturally aspirated engines. Here is why multi layer steel head gaskets excel in demanding performance applications.
When you increase an engine’s cylinder pressure — through more boost, higher compression, or both — the sealing demands on the head gasket increase dramatically. The spring-loaded bead design of a performance multi layer steel gasket scales up to meet these demands in a way that composite gaskets simply cannot. Brands like Cometic specialize in performance multi layer steel head gaskets built with tighter tolerances, additional layers, and heavier-duty elastomer coatings specifically for high-output engine applications.
Many serious engine builders also use a wider, more robust multi layer steel gasket fire ring — the critical sealing bead around the combustion bore — when building engines that will see sustained high boost or nitrous use. The ability to spec out a custom multi layer steel gasket with specific bore sizes, layer counts, and fire ring configurations is one of the reasons multi layer steel technology has become as dominant in the performance world as it is in OEM production.
Choosing the Right Multi Layer Steel Gasket — Shop Now
You do not need to pay dealer prices for a quality multi layer steel gasket. These trusted eBay listings offer genuine and aftermarket multi layer steel gaskets at competitive prices — verified sellers, buyer protection included. Find the right multi layer steel gasket for your engine below.
Quality multi layer steel head gasket available on eBay with buyer protection. Great option for stock engine replacement at a competitive price.
Shop Now →Multi layer steel gasket with precision-stamped steel layers and elastomer coating. Ideal for direct OEM replacement on most standard engines.
Shop Now →Multi layer steel gasket built to handle higher cylinder pressures. Suitable for modified or performance engines needing a durable multi layer steel seal.
Shop Now →Multi layer steel head gasket available on eBay Australia. Perfect for Australian buyers wanting a quality multi layer steel gasket without expensive shipping costs.
Shop Now →Pro tip: Always verify your engine code before ordering any multi layer steel gasket. The same vehicle model can have different engines across different years — and multi layer steel gaskets are not interchangeable between engine variants. When in doubt, use your VIN number to confirm the correct multi layer steel gasket part number before purchasing.
Final Thoughts
A multi layer steel head gasket is not just another engine part — it is the reason modern engines seal reliably for hundreds of thousands of miles. Whether you are doing a straightforward stock replacement or building a high-performance engine, choosing the right multi layer steel gasket makes all the difference.
The engineering behind multi layer steel technology is simple but brilliant — multiple precision steel layers working together to create a seal that handles extreme heat, extreme pressure, and thousands of thermal cycles without giving up. No other gasket design comes close to matching what a quality multi layer steel gasket delivers in real-world engine applications.
When it is time to replace your head gasket, do not cut corners on this part. Buy a quality multi layer steel gasket from a trusted brand, prepare your surfaces properly, follow the torque specifications, and install it dry. Do those four things and your multi layer steel gasket will outlast everything else in the engine.
A good multi layer steel gasket installed correctly is one of those repairs you do once — and never think about again. That is exactly what you want.
